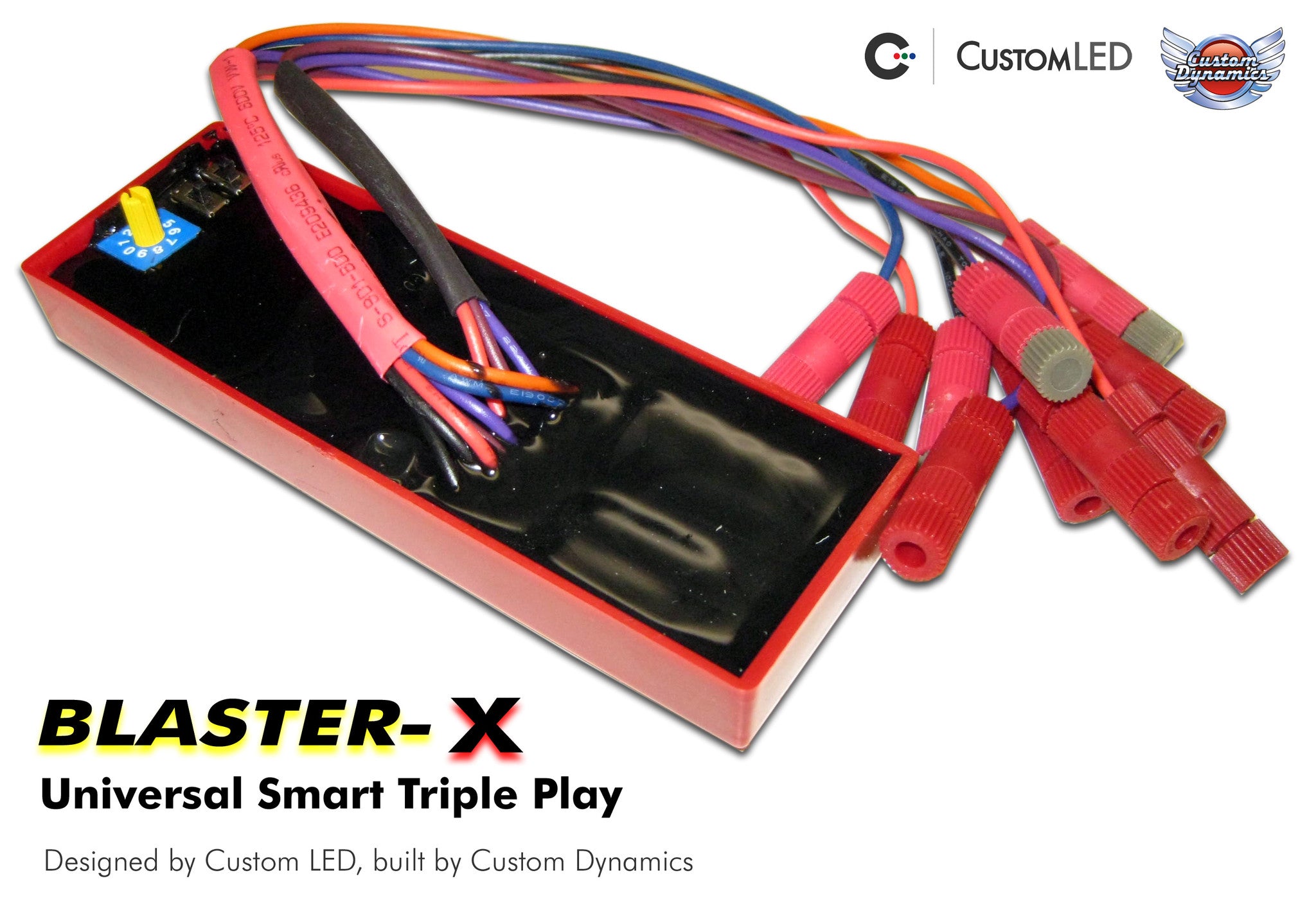

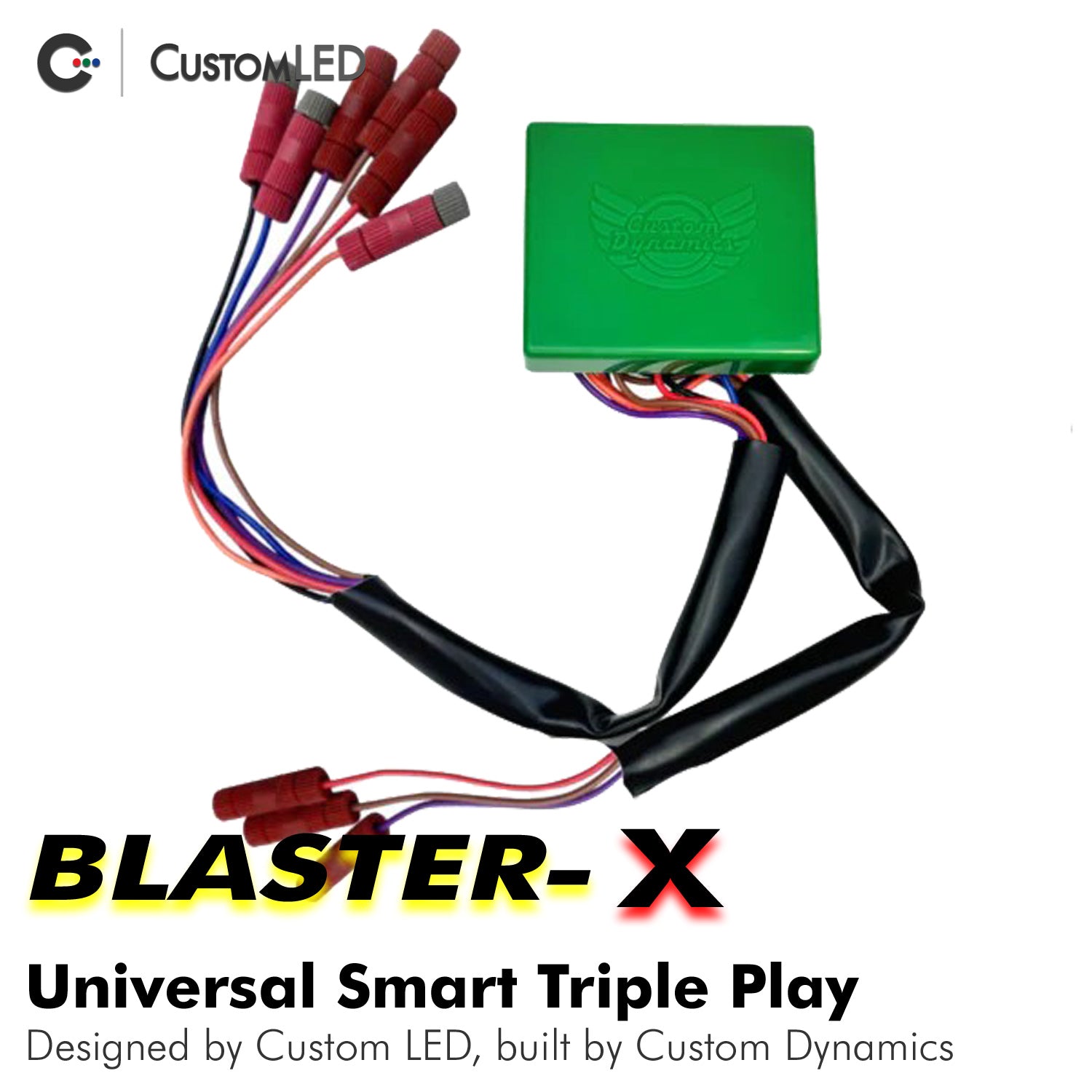

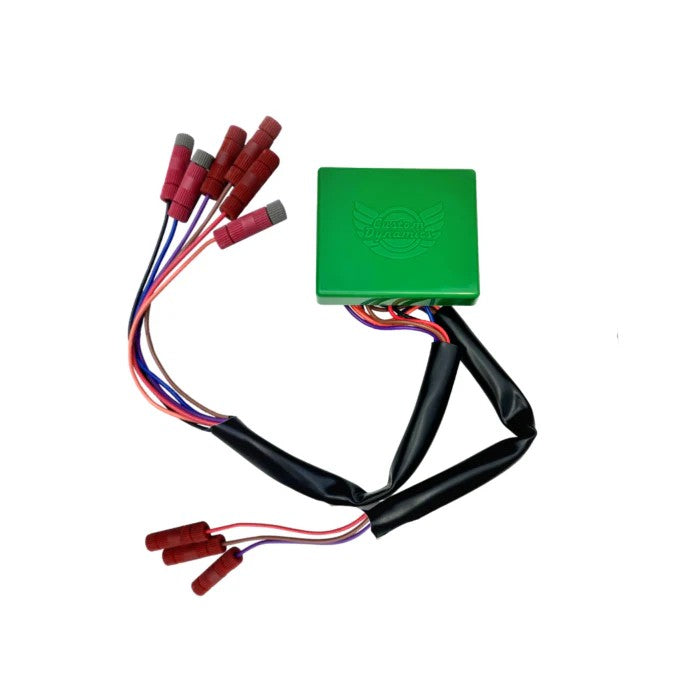

Universal Smart Triple Play - Run Brake Turn Control Module

  |
P/N: GEN-SMART-TPU-UNV

Custom LED

$146.00 CAD

In Stock! Click Add to Cart to view available shipping methods and rates.

Share:
  • Universal Run Turn Brake control module that works with LED or Incandescent tail lights.
  • Allows two rear turn signals on vehicle to function as running light, brake light and turn signals.
  • Built-in 10 pattern brake modulator for center tail light, or turn signals, or both during brake light operation.
  • Slim-line compact and water-resistant construction 4.2" x  1.4"  x  0.6".
  • Comes with detailed instructions and simple connectors.
  • *CANbus and Cruise Control Compatible.
  • Recommended accessories: Electronic LED Flasher Relay OR Stage II Load Equalizers
  • Designed by Custom LED, built by Custom Dynamics.
  • 5-Year manufacturers warranty.

Overview

The Smart Triple Play Run Brake Turn control module converts rear turn signal lamps to operate as run, brake and turn signals in the most effective way possible.  This Run Brake Turn module supports motorcycles with or without a center tail light!  That means you can have only two lamps in the rear of your motorcycle and have effective signaling for running light, brake light and turn signals.

Advanced features include: adjustable running light brightness to match outer turn signals to center tail light, full-contrast blinker function (from full off to full bright), and a 10-pattern brake modulator that can strobe the brake light function of the center light, turn signals, or both.  This run brake turn control module works with LED lamps or incandescent lamps.

This type of Brake Light Modulation has been a huge success with our Brake Alert feature found in our Blaster-X line of integrated tail lights.  For those who do not have our Blaster-X tail light, and want to increase their brake light visibility, this Universal brake light flasher is certainly for you!

Features

Features and Specifications:
  • Universal Run Turn Brake control module that works with LED or Incandescent tail lights.
  • Allows rear turn signals to function as running light, brake light and turn signals.
  • Built-in 10 pattern brake modulator for center tail light or turn signals or both during brake light operation.
  • Full-Contrast blink function allows blinker lamps to blink from OFF to FULL BRIGHT for maximum visibility.
  • Preserves ignition-off hazard function for bikes equipped with this functionality.
  • Multi-Input power path ensures reliable operation across platforms.
  • Works with LED or Incandescent lamps.
  • Short-Circuit, reverse-wire, and overload protection.
  • Slim-line compact and water-resistant construction 4.2" x  1.4"  x  0.6".
  • Comes with detailed instructions and simple connectors.
  • *CANbus and Cruise Control Compatible.
  • Recommended accessories: Electronic LED Flasher Relay OR Stage II Load Equalizers
  • Designed by Custom LED, built by Custom Dynamics.
  • 5-Year manufacturers warranty.
User Selectable Brake Modulator Patterns:
  • Pattern 0: Four Flashes then Solid  (Incandescent or LED)
  • Pattern 1: Four Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
  • Pattern 2: Seven Flashes then Solid (Incandescent or LED)
  • Pattern 3: Seven Flashes, Solid for 3 Seconds, Repeat (Incandescent or LED)
  • Pattern 4: Quad Strobe, then Solid for 1 Second then Quad Strobe (LED Only)
  • Pattern 5: Quad Strobe, Solid for 1 Second, then Quad Strobe, Solid for 3 Seconds, Repeat (LED Only)
  • Pattern 6: Custom LED Blaster X Cycle for 3 seconds, then Solid (LED Only)
  • Pattern 7: Custom LED Blaster X Cycle, Repeat (LED Only)
  • Pattern 8: Max Strobe 4 Seconds, Solid (LED Only)
  • Pattern 9: Constant Max Strobe Pattern (LED Only)

* Some motorcycles will require additional accessories for full compatibility with their system and other accessories on the motorcycle.

Video

NOTE: "Universal" version for sale above does not have OEM connectors as shown in some of the videos in this playlist.  The universal version comes with necessary connectors to hard wire unit into any compatible motorcycle.

We have a large collection of all Custom LED product videos on the Custom LED YouTube Channel.

The videos in this playlist below are a collection of user-submitted and original videos related to this product.

Installation

The Universal Smart Triple Play is installed on your motorcycle according to the detailed instructions below.

There may be additional accessories required to correct blinker speed, alarm, cruise-control, ABS and CANbus problems on your motorcycle.  These accessories could not be built into the Smart Triple Play, and are generally optional and specific to different customers needs, so they are sold separately. Note: connecting the rear turn signals to this unit effectively "removes" them from the turn signal system because the turn signal input draws very little current on this module.  This means, the blinker circuit will have less load on it as a result, which can cause fast-blink issues.

Generally speaking, replacing the flasher relay with our ELFR-1 Electronic LED Flasher Relay is the best way to maintain the stock  blink rate on any compatible motorcycle (why do I need to do this?), however some motorcycles will require the use of our Stage II Load Equalizers instead because of flasher relay incompatibility with our ELFR-1.

We have done extensive testing to ensure compatibility with a majority of motorcycles on the market - however if a problem arises, please contact us for a solution.  Please see the recommended accessories above, and read about the general issues and solutions in our Frequent Questions Page.  If you have any questions, please do not hesitate to contact us.

Installation of the Smart Triple Play is as follows:

Installation Instructions

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.
