Motorcycle LED Flasher Relay Compatibility Guide

Aprilia 1

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN

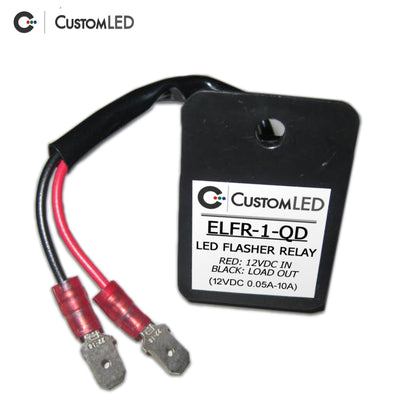

1995-1997 RS250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	AP8127286 / Guilera 01 2320B / 8127286

BMW 6

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2003-2005 F 650 CS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	61317650999 / 61 31 7 650 999
2001-2008 F 650 GS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	61317650999 / 61 31 7 650 999
2001-2007 F 650 GS Dakar	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	61317650999 / 61 31 7 650 999
2009-2010 G 450 X	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	61317650999 / 61 31 7 650 999
2009-2015 G 650 GS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	61317650999 / 61 31 7 650 999
2012-2014 G 650 GS Sertão	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	61317650999 / 61 31 7 650 999

CFMoto 20

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN

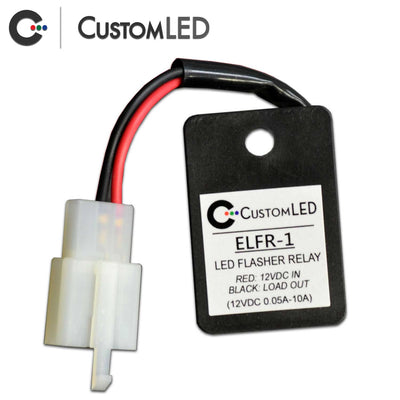

CFORCE 500 SWB	ELFR-1	—	9010-150340
CFORCE 500-A LWB/2007-2008	ELFR-1	—	9010-150340
CFORCE 500 CF500-2	ELFR-1	—	9010-150340
CFORCE 500 CF500-2A	ELFR-1	—	9010-150340
CFORCE 600 LWB	ELFR-1	—	9010-150340
UFORCE 600 CF600-5	ELFR-1	—	9010-150340
X5 / CFORCE 500 LWB	ELFR-1	—	9010-150340
X5 / CFORCE 500 SWB	ELFR-1	—	9010-150340
X6 / CFORCE 600 LWB	ELFR-1	—	9010-150340
X6 / CFORCE 600 SWB	ELFR-1	—	9010-150340
UFORCE 500 CARB	ELFR-1	—	9010-150340
2022-2025 300NK	ELFR-1	—	6KNV-161000-6400
2022-2024 300SS	ELFR-1	—	2022-2023: 6KNV-161000-8300; 2024: 6KNV-161000-6400
2024-2025 450NK	ELFR-1	—	6KNV-161000-8300
2025 IBEX 450	ELFR-1	—	6KNV-161000-8300
2022-2023 650 ADVentura	ELFR-1	—	6KNV-161000-8300
2022-2023 650NK	ELFR-1	—	6KNV-161000-8300
2022-2023 Papio 125	ELFR-1	—	6KNV-161000-8300
2024 Papio CL	ELFR-1	—	6KNV-161000-6400
2024 Papio SS 125	ELFR-1	—	6KNV-161000-6400

Ducati 32

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2001-2002 MH900E	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2001-2003 Monster S4	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2003-2005 Monster 1000 / 1000 S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2006-2008 Monster S2R 1000	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2009-2013 Monster 1100 / 1100 S / EVO	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2003-2005 ST4S / ST4S ABS	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2004-2007 ST3 / ST3S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2003-2006 Multistrada 1000 / 1000 S DS	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2007-2009 Multistrada 1100 / 1100 S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2008-2012 Hypermotard 1100 / S / EVO	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2007-2010 SportClassic GT1000	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2006-2009 SportClassic Sport 1000 / Sport 1000 S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2006 Paul Smart 1000 LE	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2003-2006 Supersport 1000 / SS1000DS	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2001-2002 Supersport 750 SS	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2001-2002 Supersport 900 SS	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
2002-2004 Superbike 998	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	53840061A / 538.4.006.1A
1995-1997; 2000-2003 Monster 400	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1993-2001 Monster 600	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1996-2001 Monster 750	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1994-2001 Monster 900	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1997-2003 Sporttouring ST2	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1999-2003 Sporttouring ST4	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1995-2003 Superbike 748	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1991-1992 Superbike 851	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1993-1995 Superbike 888	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1994-1998 Superbike 916	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1999-2001 Superbike 996	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1993-1997 Supersport 400 SS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1991-1997 Supersport 600 SS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1991-1997; 1999-2000 Supersport 750 SS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254
1991-2000 Supersport 900 SS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	53840051A / 538.4.005.1A / 036138350 / 400520254

Genuine 3

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
Hooligan with LED turn signals	ELFR-1	—	AF5860010000 / AF5860000000
Buddy Kick with LED turn signals	ELFR-1	—	AF5860010000 / AF5860000000
Rattler 50 with LED turn signals	ELFR-1	—	AF5860010000 / AF5860000000

Harley-Davidson 1

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
Street 500 XG500 / Street 750 XG750	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	early Street XG 71400089; later Street XG 71400123. Both map to ELFR-1-QD.

Honda 154

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
Navi	ELFR-1	—	38301-KTF-671
DAX125 / ST125	ELFR-1	—	38301-KZZ-J01
Monkey	ELFR-1	—	38301-KTF-671; 38301-KZZ-J01
2019-2024 Super Cub C125	ELFR-1	—	38301-KZZ-J01
Trail125	ELFR-1	—	38301-KZZ-J01
ADV150	ELFR-1	—	38301-KZZ-J01
2019-2022 PCX150 / WW150 / ABS	ELFR-1	—	38301-KZZ-J01
ADV160	ELFR-1	—	38301-KZZ-J01
2023-2024 PCX160 / WW160 / ABS	ELFR-1	—	38301-KZZ-J01
CRF250 Rally / ABS	ELFR-1	—	38301-KYJ-641
CRF250L / ABS	ELFR-1	—	38301-KYJ-641
NSS250 Reflex / ABS	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
PS250 Big Ruckus	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
VTR250	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CB300R / ABS	ELFR-1	—	38301-KZZ-J01
2021-2025 CRF300 Rally / ABS	ELFR-1	—	38301-KYJ-641; 38301-KZZ-J01
2021-2025 CRF300L / ABS	ELFR-1	—	38301-KYJ-641; 38301-KZZ-J01
Forza 300 / NSS300 / ABS	ELFR-1	—	38301-KTF-671
2020-2026 Rebel 300 / ABS	ELFR-1	—	38301-KZZ-J01
CB-1 / CB400F	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
CB450SC Nighthawk 450	ELFR-1	—	1985: 38301-MF8-771; 1986: 38301-KK9-951/952
CRF450L / RL	ELFR-1	—	38301-KZZ-J01
Rebel 450 / CMX450	ELFR-1	—	38301-MF8-773; 38301-MG9-681
2019-2023 CB500F / FA	ELFR-1	—	38301-KZZ-J01
2019-2023 CB500X / XA	ELFR-1	—	38301-KZZ-J01
2019-2023 CBR500R / RA	ELFR-1	—	38301-KZZ-J01
CL500	ELFR-1	—	38301-KZZ-J01
2020-2026 Rebel 500 / ABS	ELFR-1	—	38301-KZZ-J01
Shadow 500	ELFR-1	—	38301-MF5-771
V30 Magna / VF500C	ELFR-1	—	38301-MF8-771
VF500F Interceptor	ELFR-1	—	38301-MF5-771
VT500FT Ascot	ELFR-1	—	38301-MF8-771
2004 599 / CB600F	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F Hurricane	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F2	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F3	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F4	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR600F4i	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
2007-2026 CBR600RR / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672; 38301-KTF-671
2019-2023 CBR650R / ABS	ELFR-1	—	38301-KZZ-J01
Shadow VLX / VLX Deluxe	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2019-2023 CB650R / ABS	ELFR-1	—	38301-KZZ-J01
NT650 Hawk GT	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
Nighthawk 650 / CB650SC	ELFR-1	—	38301-MB0-004; 38301-MF8-773; 38301-MG9-681
Magna VF700	ELFR-1	—	38301-MF8-773; 38301-MG9-681
Nighthawk S / CB700SC	ELFR-1	—	38301-MB0-004; 38301-MF8-773; 38301-MG9-681
Shadow 700	ELFR-1	—	38301-MF5-771
VF700F Interceptor	ELFR-1	—	38301-MF8-771
VF700S Sabre	ELFR-1	—	38301-MF8-771
VFR700 Interceptor	ELFR-1	—	38301-MF5-771
VT700 Shadow	ELFR-1	—	38301-MF8-771
CB750 Nighthawk 750	ELFR-1	—	38301-MF8-771
Magna VF750	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2021-2024 NC750X / DCT	ELFR-1	—	38301-KZZ-J01
RVF750R RC45	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
Shadow ACE 750 / ACE Deluxe	ELFR-1	—	38301-MF8-771
Shadow Aero / ABS	ELFR-1	—	38301-MEG-000
Shadow Phantom	ELFR-1	—	38301-MEG-000; 38301-KZZ-J01
Shadow RS	ELFR-1	—	38301-MEG-000
Shadow Spirit 750 / ABS	ELFR-1	—	38301-MF5-771; 38301-MEG-000
VF750F Interceptor	ELFR-1	—	38301-MF8-771
VFR750	ELFR-1	—	38301-MF5-771
VFR750 Interceptor	ELFR-1	—	38301-MF5-771
VFR750F	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
VFR750R RC30	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
PC800 Pacific Coast	ELFR-1	—	38301-MF8-771; 38301-KK9-951/952
VFR800 Interceptor / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
VFR800FI Interceptor	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
VT800 Shadow	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
919	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
CBR900RR	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CBR929RR / CBR929RE	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
CB1000	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
2011-2016; 2018-2019 CB1000R / CB1000RA	ELFR-1	—	38301-MBW-D21; 38301-MG9-672; 38301-KZZ-J01
CBR1000F Hurricane	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2004-2016 CBR1000RR	ELFR-1	—	38301-MBW-D21; 38301-MG9-672; 38301-MEG-000
CBR1100XX Blackbird	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2018-2019 CRF1000 Africa Twin / DCT	ELFR-1	—	38301-KZZ-J01
RC51	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
VF1000F Interceptor	ELFR-1	—	38301-KK9-951/952; 38301-MB0-004; 38301-MG9-671/681
VF1000R	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
VTR1000F Super Hawk	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
1983 GL1100 Gold Wing / Aspencade / Interstate	ELFR-1	—	38301-MB0-004; 38301-MG9-681
2021-2024 Rebel 1100 / DCT	ELFR-1	—	38301-KZZ-J01
ST1100 / ABS-TCS	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
Shadow 1100	ELFR-1	—	38301-MF5-771
Shadow ACE 1100	ELFR-1	—	38301-MF5-771
Shadow ACE Tourer 1100	ELFR-1	—	38301-MF5-771
Shadow Aero 1100	ELFR-1	—	38301-MF5-771
Shadow Sabre 1100	ELFR-1	—	38301-MF5-771
Shadow Spirit 1100	ELFR-1	—	38301-MF5-771
V65 Magna / VF1100C	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
GL1200 Gold Wing / Aspencade / Interstate / Limited / SE-i	ELFR-1	—	38301-MG9-672
2003-2010; 2012-2013 ST1300 / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
ST1300P	ELFR-1	—	38301-MEG-000
VT1300 Fury / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
VT1300 Interstate / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
VT1300 Sabre / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
VT1300 Stateline / ABS	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
VTX1300 S/C/R/T	ELFR-1	—	38301-MBW-D21; 38301-MG9-672
GL1500C Valkyrie / Tourer / Interstate	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681
2002-2004 VTX1800	ELFR-1	—	38301-KK9-951; 38301-KK9-952; 38301-MB0-004; 38301-MF8-773; 38301-MG9-671; 38301-MG9-681

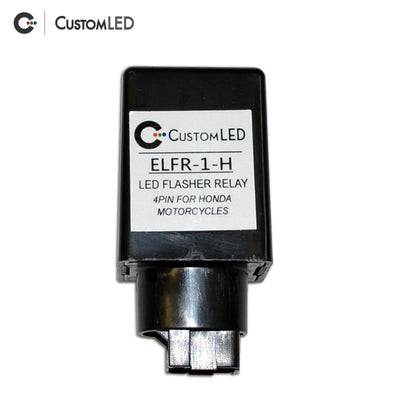

2017-2019 Rebel 300	ELFR-1-H	—	38301-MJE-D01/D02
2013-2018 CB500F	ELFR-1-H	—	2013-2015: 38301-MEW-921; 2016-2018: 38301-MJE-D01/D02
2013-2018 CB500X	ELFR-1-H	—	2013-2015: 38301-MEW-921; 2016-2018: 38301-MJE-D01/D02
2013-2018 CBR500R	ELFR-1-H	—	2013-2015: 38301-MEW-921; 2016-2018: 38301-MJE-D01/D02
2017-2019 Rebel 500	ELFR-1-H	—	38301-MJE-D01/D02
CBR650F	ELFR-1-H	—	38301-MJE-D01/D02
CB650F	ELFR-1-H	—	38301-MJE-D01/D02
CTX700 / CTX700N / DCT	ELFR-1-H	—	38301-MEW-921
DN-01 / NSA700A	ELFR-1-H	—	38301-MEW-921
NC700X / DCT	ELFR-1-H	—	2012-2015: 38301-MEW-921; 2016-2017: 38301-MJE-D01/D02
2018-2020 NC750X / DCT	ELFR-1-H	—	38301-MJE-D01/D02
VFR1200F / DCT	ELFR-1-H	—	38301-MEW-921
XL100S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Trail 110	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Aero 125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
Elite 125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
NX125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
PCX125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
1977 Trail 125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
XL125S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Elite 150 / Deluxe	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
XL175	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Twinstar 185	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
XL185S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Twinstar 200	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
CRF230L	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KG0-024
CRF230M	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KG0-024
Elite 250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
Helix	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
NX250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
Nighthawk 250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
1996-2016 Rebel 250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KG0-024
XL250S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
XR250L	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
XL350	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
XL500S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
1993-2025 XR650L	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
Express / Express II	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Aero 50	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
Aero 80	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
Elite 80	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743; 38301-GN3-672
Gyro	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743
Gyro S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
Passport / C70	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
Spree	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-KJ6-743; 38301-GN3-672
Spree Special	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN3-672
Trail 70 / CT70	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405; 38301-KJ6-743
Trail 90	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
XL75	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
XL80S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-GF0-405
2013 PCX150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN0-603 / Mitsuba FR2237
Grom 125 / ABS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38301-GN0-603 / Mitsuba FR2237

Husqvarna 13

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2017-2019 FE 250	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2017-2019; 2023 FE 350	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2015-2016; 2020-2023 FE 350S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2018 Svartpilen 401	ELFR-1	Locking Tab modification applies when OEM relay PN is 76511030000.	90511030000; 76511030000
2018-2019 Vitpilen 401	ELFR-1	Locking Tab modification applies when OEM relay PN is 76511030000.	90511030000; 76511030000
2017-2019 FE 450	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2017-2019; 2023 FE 501	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2015-2016; 2020-2023 FE 501S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2016-2024 701 Enduro	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
701 Enduro LR	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2016-2024 701 Supermoto	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
2019 Svartpilen 701	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000
Vitpilen 701	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	76511030000

Kawasaki 109

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
KLX250 / S / SF	ELFR-1	—	27002-1101; 27002-1097
1995-2007 Ninja 250R	ELFR-1	—	27002-1092; 27002-1101; 27002-1097
Super Sherpa	ELFR-1	—	27002-1101
2017-2023 Versys-X 300 / ABS	ELFR-1	—	27002-0006
Ninja ZX-4R / ZX-4RR / ABS	ELFR-1	—	27002-0068
Ninja 500	ELFR-1	—	27002-0006
1999-2009 Ninja 500R	ELFR-1	—	27002-1101
Vulcan 500 LTD	ELFR-1	—	27002-1101
2024-2025 Z500	ELFR-1	—	27002-0006
2009-2010 ER-6n	ELFR-1	—	27002-1097; 27002-0006
Eliminator 600	ELFR-1	—	27002-1092
2008-2018 KLR650	ELFR-1	—	27002-1101
1995-2001 Ninja ZX-6	ELFR-1	—	27002-1092; 27002-1101; 27002-0006
1995-2006; 2008 Ninja ZX-6R	ELFR-1	—	27002-1092; 27002-1101; 27002-0006
2013-2026 Ninja ZX-6R / ABS	ELFR-1	—	27002-1097; 27002-0068
Ninja ZX-6RR	ELFR-1	—	27002-1092; 27002-1101; 27002-0006
2017-2022 Z650 / ABS	ELFR-1	—	27002-0006
2022-2023 Z650RS / ABS	ELFR-1	—	27002-0006
2002-2008 ZZR600	ELFR-1	—	27002-1101
2012-2022 Ninja 650 / ABS	ELFR-1	—	27002-0006
Ninja 650R	ELFR-1	—	27002-0010; 27002-1097
2007-2021; 2025-2026 Versys 650 / ABS	ELFR-1	—	27002-0006; 27002-1097; 27002-0068
Vulcan S / ABS / Cafe	ELFR-1	—	27002-0006
W650	ELFR-1	—	27002-1101
Ninja ZX-7R / ZX-7RR	ELFR-1	—	27002-1101; 27002-1092
2005-2006 Z750S	ELFR-1	—	27002-1097
ZR-7 / ZR-7S	ELFR-1	—	27002-1101
Vulcan 800 / Classic	ELFR-1	—	27002-1101
2019-2023 W800 / W800 Cafe	ELFR-1	—	27002-1101; 27002-0006
2016 Z800 ABS	ELFR-1	—	27002-1097
1998-2003 ZX-9R	ELFR-1	—	27002-1101
2006-2024 Vulcan 900 / Classic / Custom / LT	ELFR-1	—	27002-1101
Z900 / ABS / SE	ELFR-1	—	27002-1097; 27002-0068
2018-2026 Z900RS / Cafe / SE	ELFR-1	—	27002-1097; 27002-0068
2011-2023 Ninja 1000 / 1000SX	ELFR-1	—	27002-0006
2004-2020; 2022-2026 ZX-10R / ABS / RR	ELFR-1	—	27002-1101; 27002-0006; 27002-1097; 27002-0068
2012-2021 Versys 1000 / LT / SE	ELFR-1	—	27002-1097
2020-2023 Z H2 / Z H2 SE	ELFR-1	—	27002-1097
2003-2006; 2014-2016 Z1000 / ABS	ELFR-1	—	27002-1101; 27002-1097
ZZR1200	ELFR-1	—	27002-1101
GPZ1100 / ABS	ELFR-1	—	27002-1092
Ninja 1100SX / SE	ELFR-1	Verify connector / exact application before ordering.	27002-0068
1995-2001 ZX-11	ELFR-1	—	27002-1092; 27002-1101
1995 ZR1100	ELFR-1	—	27002-1092; 27002-1101
ZRX1100	ELFR-1	—	27002-1092; 27002-1101
Ninja ZX-12R / ZX1200	ELFR-1	—	27002-1101
ZRX1200R	ELFR-1	—	27002-1092; 27002-1101
Concours 14 / ABS	ELFR-1	—	27002-1090
Ninja ZX-14 / ZX-14R / ABS	ELFR-1	—	27002-1101
1996-1998 Vulcan 1500 Classic	ELFR-1	—	27002-1092
1988-1993 Ninja 600R	ELFR-1	—	27002-1063; 27002-1101
1988-1990 Ninja ZX-10	ELFR-1	—	27002-1063; 27002-1101
1983 Spectre 550	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1984-1986 GPz 550	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1984-1986 KL600	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1984 LTD 550 Shaft	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1985-1990 454LTD	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1985-2005 KLR250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1986-1990; 1992-1994 Ninja 250R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1987-2007 KLR650	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1987-1995 Vulcan 88 / VN-15SE	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1988-1989; 1991-1994 Eliminator 250 / 250HS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1990-1991 KL650	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1990-1996 Vulcan 500	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1990-1993 ZR550	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053; 27002-1060
1991-1993 ZR750	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1993-1996 KLX650	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1994-1997 Ninja ZX-9R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1996-1999 Vulcan 1500	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1996-1997 Vulcan 1500L	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1999-2001 KMX 125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
2001-2007; 2009 Eliminator 125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1053
1985 Vulcan 700 / LTD	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1985-1987 Ninja 600	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1986-2006 Concours 1000	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1986-2006 Vulcan 750	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1986-2003 Voyager XII	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1986-1987 ZL600 Eliminator	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1987-1998 EX500 / Ninja 500	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1987 Ninja 600RX	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1987 ZL1000 Eliminator	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1990-1994 Ninja ZX-6	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1990-1994 Ninja ZX-11	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1992-1994 ZR1100	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
1994-1997 Ninja 600R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1060
2000-2002; 2005-2008 Vulcan 1500 Classic / Classic FI	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2001-2005 Vulcan 1500 Drifter	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2001-2004 Vulcan 1500 Nomad FI	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2002-2003 Vulcan 1500 Mean Streak	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2003-2008 Vulcan 1600 Classic	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2004-2008 Vulcan 1600 Mean Streak	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2005-2008 Vulcan 1600 Nomad	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2004-2009 Vulcan 2000	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2005-2006 Vulcan 2000 LTD / Limited	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2006-2009 Vulcan 2000 Classic	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2006-2010 Vulcan 2000 Classic LT	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2009-2012 Vulcan 1700 Classic	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2009-2010 Vulcan 1700 Classic LT	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2009-2014 Vulcan 1700 Nomad / ABS	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2009-2023 Vulcan 1700 Voyager / ABS	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2011-2023 Vulcan 1700 Vaquero / ABS	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1113
2018-2024 Ninja 400	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-0031
2019-2022 Z400	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-0031
2020-2023 KLX230; 2022-2023 KLX230 S/SE; 2023 KLX230SM	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-0031
2021-2026 KLX300; 2021-2024 KLX300SM	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-0031
2022-2026 KLR650	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-0031
2008-2012 Ninja 250R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-1091
2013-2017 Ninja 300 / Ninja 300 ABS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	27002-0059
1999-2006 Vulcan 800 / Vulcan 1500 Classic / Nomad / Drifter	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	27002-1110; 27002-1111

KTM 34

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
1998-2005 KTM 125 EGS / EXC / EXE / SX / SXS / Supermoto	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
1997-2005 KTM 200 Jackpinner / EGS / EXC / MXC / SX	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
1998-2005 KTM 250 EGS / EXC / EXC Racing / Six Days	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
1998-2005 KTM 300 EGS / EXC / Six Days	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2012-2014 KTM 350 EXC-F / EXCF	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 380 EGS / EXC	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
1998-2005 KTM 400 LC4 / SXC / TXC / Super Competition / EXC Racing / LS-E	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2003-2005; 2007-2011 KTM 450 EXC / EXC Racing / EXC-R / MXC / SX / SXS	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2012-2014 KTM 500 EXC	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 520 EXC Racing	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 525 EXC Racing / MXC / SX / Racing Supermoto	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 530 EXC / EXC-R	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
1998-1999; 2003-2004 KTM 540 SXC / SXS Racing	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 620 EGS-E Adventure / LC4 / SC / Super Competition / Supermoto / TXC	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 625 SXC / SMC / LC4 Super Competition	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 640 Adventure / Duke / Duke II / LC4 / LC4-E / Supermoto	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 660 Rallye / SMC / LC4 Rallye	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2009-2014 KTM 690 Duke	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2008; 2010-2013 KTM 690 Enduro / Enduro R	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2008; 2010 KTM 690 SMC	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2007-2008 KTM 690 Supermoto	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2003-2007 KTM 950 Adventure / Adventure S	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 950 Super Enduro R	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
KTM 950 Supermoto / Supermoto R	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2007-2008 KTM 990 Adventure	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2005-2008 KTM 990 Super Duke	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2010-2011 KTM 990 Supermoto / SMR / SMT	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector.	44611207200
2020-2022 200 Duke	ELFR-1	—	90511030000
2017-2020 390 Duke	ELFR-1	—	90511030000
2022-2024 RC 390	ELFR-1	—	90511030000
2020-2022; 2024 390 Adventure / 390 Adventure Spoke W	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector. Confirm +12V location / pin arrangement and adjust as necessary before installation.	90511530000
2022 250 Duke	ELFR-1	—	90511030000
2021-2023 390 Duke	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector. Confirm +12V location / pin arrangement and adjust as necessary before installation.	90511530000
2015-2016; 2018-2020 RC 390	ELFR-1	Locking Tab modification to ELFR-1 is necessary to fit 2-pin harness into 3-pin ELFR-1 connector. Confirm +12V location / pin arrangement and adjust as necessary before installation.	90511530000

Kymco 17

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
Dink 50	ELFR-1	—	38300-LEA5-E0A
Sento 50	ELFR-1	—	38300-LEA5-E0A
Dink 125	ELFR-1	—	38300-LEA5-E0A
Movie 125 S	ELFR-1	—	38300-LEA5-E0A
People GT / People GTi	ELFR-1	—	38300-LCB4-900
Quannon 125	ELFR-1	—	38300-LEA5-E0A
XCiting 250	ELFR-1	—	38300-LEA5-E0A; XCiting 500 RI MMC ABS 38300-LCB4-900
XCiting 300	ELFR-1	—	38300-LEA5-E0A; XCiting 500 RI MMC ABS 38300-LCB4-900
MXU 400	ELFR-1	—	38300-LEA5-E0A; 38300-LBC6-90A
Maxxer 400	ELFR-1	—	38300-LEA5-E0A
Maxxer 450i	ELFR-1	—	38300-LEA5-E0A
UXV 450	ELFR-1	—	38300-LEA5-E0A; 38300-LBC6-90A
MXU 465	ELFR-1	—	38300-LEA5-E0A; 38300-LBC6-90A
MXU 500	ELFR-1	—	38300-LEA5-E0A; 38300-LBC6-90A
UXV 500	ELFR-1	—	38300-LEA5-E0A; 38300-LBC6-90A
XCiting 500	ELFR-1	—	38300-LEA5-E0A; XCiting 500 RI MMC ABS 38300-LCB4-900
UXV 700	ELFR-1	—	38300-LEA5-E0A; 38300-LBC6-90A

Lance 4

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
PCH 200i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-T40-0101 / SYM T40 ST-674
Cabo 200i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-T40-0101 / SYM T40 ST-674
Havana 200i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-T40-0101 / SYM T40 ST-674
Cali Classic 200i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-T40-0101 / SYM T40 ST-674

Piaggio 8

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2007-2008 Piaggio BV 250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2012-2015; 2017-2021 Piaggio BV 350	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2008 Piaggio BV 500	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2007-2008 Piaggio BV Tourer 250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2008 Piaggio BV Tourer 500	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2013-2018 Piaggio Fly 150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2017-2024 Piaggio Liberty 50	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2017-2024 Piaggio Liberty 150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289

Suzuki 55

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2025 GSX-S1000GT	ELFR-1	—	38610-06LA1
2025 GSX-S1000GX	ELFR-1	—	38610-06LA1
2022-2024 GSX-S1000	ELFR-1	—	38610-06LA0
2020; 2022-2024 Katana / GSX-S1000S	ELFR-1	—	38610-06LA0
2019 Burgman 400 / AN400	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-06F00; 38610-06F01
2014-2019 V-Strom 1000 / V-Strom 1000XT	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-06F00; 38610-06F01
2017-2019; 2022-2025 V-Strom 650 / V-Strom 650XT	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	2017-2018: 38610-06F00; 2019, 22-25: 38610-06F01
2022 V-Strom 1050 / DL1050R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-06F01
2017-2018; 2020-2025 GSX-R1000 / GSX-R1000R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-06F00; 38610-06F01
2017-2019; 2022-2026 SV650; 2019; 2022-2025 SV650X	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	2017-2018: 38610-06F00; 2019, 22-26: 38610-06F01
2019; 2025 GSX250R	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-06F00; 38610-06F01
1993-1998 GSX-R1100W	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1996-2009; 2011; 2013-2019; 2022-2026 DR650SE / DR650SEL	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1996-2019: 38610-26E00; 2022-2026: 38610-26E01
1996-1999 Bandit 600 / GSF600S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1997-2000 Bandit 1200 / GSF1200S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1997-2002 GS500 / GS500E	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1996-1999 GSX-R750X	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1996-2019 Savage 650 / Boulevard S40	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1996-2009 Intruder 1400 / VS1400	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1998-2009 Intruder 800 / VS800	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1997-2001 TL1000S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-26E00
1990-1995 DR250SES	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-31X50
1990-1999 DR350 / DR350SE	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-31X50
1991-1997 GN125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-31X50
1994-1996 DR125SE	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-31X50
1996-2009; 2013; 2015-2019 DR200SE / DR200S	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38610-31X50

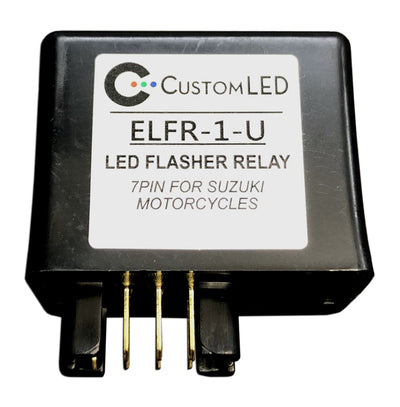

1999-2010 Marauder GZ250	ELFR-1-U	—	1999-2001: 38610-03F00; 2002-2010: 38610-12FA0
2009-2019 TU250X	ELFR-1-U	—	38610-03F00; 38610-03F01
2003-2009 Burgman 400 / AN400	ELFR-1-U	—	38610-03F00; 38610-03F01
2000-2022 DR-Z400S	ELFR-1-U	—	38610-03F00; 38610-03F01
2005-2024 DR-Z400SM	ELFR-1-U	—	38610-03F00; 38610-03F01
2000-2003 Bandit 600 / GSF600S	ELFR-1-U	—	38610-03F00; 38610-03F01
1997-2003; 2006-2009; 2019; 2021-2026 GSX-R600	ELFR-1-U	—	1997-2003, 2006-2009: 38610-03F00; 2019, 2021-2026: 38610-03F01
1998-2006 Katana 600 / GSX600F	ELFR-1-U	—	38610-03F00; 38610-03F01
2003-2017 Burgman 650 / AN650/A	ELFR-1-U	—	38610-03F00; 38610-10G00; 38610-03F01
2008-2009 Katana 650 / GSX650F	ELFR-1-U	—	38610-03F00
2009; 2015 SFV650 Gladius	ELFR-1-U	—	38610-03F00; 38610-03F01
1999-2008 SV650 / SV650S	ELFR-1-U	—	38610-03F00; 38610-03F01
2004-2016 V-Strom 650 / DL650/A	ELFR-1-U	—	38610-03F00; 38610-03F01
2000-2002; 2006-2008; 2019; 2021-2026 GSX-R750	ELFR-1-U	—	2000-2002, 2006-2008: 38610-03F00; 2019, 2021-2026: 38610-03F01
2015-2023 GSX-S750	ELFR-1-U	—	38610-03F01
1998-2006 Katana 750 / GSX750F	ELFR-1-U	—	38610-03F00; 38610-03F01
2001-2025 Boulevard C50 / VL800	ELFR-1-U	—	38610-03F00; 38610-03F01
1997-2019 Marauder VZ800 / Boulevard M50	ELFR-1-U	—	38610-03F00; 38610-03F01; cross-product note retained for 38610-26E00 overlap
2001-2016 GSX-R1000	ELFR-1-U	—	38610-03F00; 38610-03F01
2003-2007 SV1000S	ELFR-1-U	—	38610-03F00; 38610-03F01
2002-2012 V-Strom 1000 / DL1000	ELFR-1-U	—	2002, 2004-2006: 38610-12FA1; 2002-2012: 38610-03F01
2001-2005 Bandit 1200 / GSF1200/S	ELFR-1-U	—	38610-03F00; 38610-03F01
2007-2009 Bandit 1250 / GSF1250SA	ELFR-1-U	—	38610-03F00
2008-2009 B-King / GSX1300BK/A	ELFR-1-U	—	38610-03F00; 38610-03F01
1999-2019 Hayabusa / GSX1300R	ELFR-1-U	—	38610-03F00; 38610-03F01
2009-2019 Boulevard M90	ELFR-1-U	—	38610-03F00; 38610-03F01
1998-2019 VL1500 Intruder LC / Boulevard C90	ELFR-1-U	—	38610-03F00; 38610-03F01
Boulevard C109R	ELFR-1-U	—	38610-03F00
2006-2025 Boulevard M109R / VZR1800	ELFR-1-U	—	38610-03F00; 38610-03F01

SYM 1

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
Fiddle III 200i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	38300-T40-0101 / SYM T40 ST-674

Triumph 23

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2009-2016 Bonneville / Bonneville T100 / SE EFI	ELFR-1	Verify connector / exact application before ordering.	T2506000
2006-2017 Daytona 675 / 675R / SE	ELFR-1	—	T2506000
2009-2017 Scrambler EFI	ELFR-1	Verify connector / exact application before ordering.	T2506000
2008-2016 Street Triple 675 / 675R / 675RX	ELFR-1	—	T2506000
2017-2023 Street Triple 765 / 765S / 765R / 765RS	ELFR-1	—	T2506000
2009-2016 Thruxton EFI	ELFR-1	Verify connector / exact application before ordering.	T2506000
2011-2015 Tiger 800 / 800 XC	ELFR-1	—	T2506000
2007-2012 Tiger 1050 / SE	ELFR-1	—	T2506000
1997-2006 Daytona T595 / 955i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2008-2020 America EFI	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2001-2022 Bonneville / Bonneville T100 / SE	ELFR-1-QD	Verify connector / exact application before ordering. L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2002-2005 Daytona 600	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2002-2005 Daytona 650	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2006-2022 Rocket III Classic / Roadster	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2006-2022 Scrambler	ELFR-1-QD	Verify connector / exact application before ordering. L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2002-2005 Speed Four	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2000-2003 TT600	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
1994-1996 Speed Triple 885	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
1999-2004 Sprint RS	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2004-2020 Thruxton	ELFR-1-QD	Verify connector / exact application before ordering. L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
1993-1998 Tiger 885i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2001-2007 Tiger 955i	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531
2007-2020 Speedmaster EFI	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	T2500531

Vespa 15

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2013-2014; 2016-2019; 2021; 2023 Vespa 946	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2001-2005 Vespa ET2	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2001-2005 Vespa ET4	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2020-2021 Vespa Elettrica 4 KW	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2009-2022 Vespa GTS300	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2007-2008 Vespa GTV250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2011-2017; 2019 Vespa GTV300	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2007 Vespa Granturismo 60	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2009-2013 Vespa LX150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2011-2015 Vespa LXV150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2015-2023; 2025-2026 Vespa Primavera 50	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2015-2023; 2025-2026 Vespa Primavera 150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2009-2013 Vespa S150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2015-2022 Vespa Sprint 50	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289
2015-2023 Vespa Sprint 150	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	1D002376 / 1D004175R / 638755 / 640289

Victory 2

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2004 Victory Kingpin	ELFR-1	—	2410338 / FE218BH
2003-2004 Victory Vegas	ELFR-1	—	2410338 / FE218BH

Yamaha 66

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2015-2020 SMAX	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
2001-2026 TW200	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
1992-2007 XT225 / Serow	ELFR-1	—	4BE-83350-00-00; 4VR-83350-00-00; 4VR-83350-02-00
2006-2008 Morphous 250	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
1995-2026 V Star 250 / Virago 250 / XV250	ELFR-1	—	3GM-83350-00-00; 3GM-83350-01-00; 3GM-83350-02-00; 3GM-83350-03-00
2008-2020 WR250R	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2008-2011 WR250X	ELFR-1	—	4MY-83350-01-00; 4MY-83350-03-00
2008-2025 XT250	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2018-2022 XMAX	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2005-2015 Majesty 400	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
2015-2018 SR400	ELFR-1	—	3HT-83350-00-00; 3HT-83350-01-00
TMAX	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
FZ6	ELFR-1	—	4VR-83350-00-00; 4VR-83350-02-00
FZ6R	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
Seca II XJ600S	ELFR-1	—	3YA-83350-00-00; 3YA-83350-10-00; 3GM-83350-01-00; 3GM-83350-03-00
1999-2016 YZF-R6 / R6S	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
YZF600R	ELFR-1	—	3GM-83350-00-00; 3GM-83350-01-00; 3GM-83350-03-00; 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
2021-2023 Tenere 700	ELFR-1	—	5C4-83350-01-00; 5C4-83350-02-00
2018-2021 XSR700	ELFR-1	—	5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
1994; 1996-1998 YZF750 / YZF750R	ELFR-1	—	3YA-83350-00-00; 3YA-83350-10-00; 3GM-83350-00-00; 3GM-83350-01-00; 3GM-83350-03-00
FZ8	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
TDM850	ELFR-1	—	3YA-83350-00-00; 3YA-83350-10-00
FJ-09 / Tracer 900 / GT	ELFR-1	—	4C8-83350-10-00; 4C8-83350-11-00; 4C8-83350-12-00
2014-2020 FZ-09 / MT-09	ELFR-1	—	4C8-83350-10-00; 4C8-83350-11-00; 4C8-83350-12-00
2016-2021 XSR900	ELFR-1	—	4C8-83350-10-00; 4C8-83350-11-00; 4C8-83350-12-00
SR950	ELFR-1	—	5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2003-2012 FJR1300 / A / AE / ABS	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
FZ1	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00; 4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
GTS1000	ELFR-1	—	3YA-83350-00-00; 3YA-83350-10-00
YZF1000R	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
1991-1993 FJ1200	ELFR-1	—	3YA-83350-00-00; 3YA-83350-10-00
1996; 1999-2013 Royal Star / Royal Star Venture	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
Bolt C-Spec	ELFR-1	—	5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2015-2020 FZ-07 / MT-07 / ABS	ELFR-1	—	5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2012-2013 Super Tenere	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00
VMAX	ELFR-1	—	5C4-83350-00-00; 5C4-83350-01-00; 5C4-83350-02-00
2015-2024 YZF-R3 / ABS	ELFR-1	—	4VR-83350-00-00; 4VR-83350-02-00; 3HT-83350-00-00; 3HT-83350-01-00
1999 YZF-R7	ELFR-1	—	3GM-83350-01-00; 3GM-83350-03-00
1978-1980 DT100	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
1978-1981 DT125	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
1978-1981 DT175	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
1978-1980 DT250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
1988-1990 Route 66 / XV250	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00-00; 2UJ-83350-01-00
1980-1983 XT250	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
1978 DT400	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
1978-1981 XT500	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
FZR600	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00-00; 2UJ-83350-01-00
1989-1990 Radian	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00-00; 2UJ-83350-01-00
V Star 650	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00/01
1989-1990 FZR1000	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00-00; 2UJ-83350-01-00
V Star 1100	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	5EL-83350-00/01
1989-1990 FJ1200	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00-00; 2UJ-83350-01-00
1990-2007 V-Max 1200	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	2UJ-83350-00-00; 2UJ-83350-01-00
Roadliner	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	1D7-83350-00-00; 1D7-83350-01-00
2006-2014 Stratoliner	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	1D7-83350-00-00; 1D7-83350-01-00
2008-2014 Raider / Raider S; 2012-2013 Raider SCL	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	1D7-83350-00-00; 1D7-83350-01-00
2007-2010 C3	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3B3-83350-00-00
DT50 Enduro	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
Jog	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	29G-83350-20-00
QT50 / Yamahopper	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3BK-83350-00-00
Razz	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	29G-83350-20-00
2001-2005 Vino / Vino Classic	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	29G-83350-20-00
1989-1990 Zuma 50	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	29G-83350-20-00
2012-2019 Zuma 50F / 50FX / 50X	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	3B3-83350-00-00
1999-2007 Road Star / Road Star Silverado / Road Star Midnight	ELFR-1-QD	Self-canceling feature of OEM relay will be lost. View installation guidance	4WM-83350-00-00; 5VN-83350-00-00
1998-2014 YZF-R1	ELFR-1	—	4MY-83350-01-00; 4MY-83350-02-00; 4MY-83350-03-00; 4C8-83350-10-00

Zero Motorcycles 3

Compatible motorcycle	Custom LED relay	Important note	OEM relay PN
2014-2021 S / SR with LED turn signals	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	2045-08281 / 4508281; Guilera 013341 compatible replacement/supplied unit
DS / DSR with LED turn signals	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	2045-08281 / 4508281; Guilera 013341 compatible replacement/supplied unit
FX / FXE / FXS with LED turn signals	ELFR-1-QD	L/B wiring guidance If the OEM relay body is marked L/B, simply match those markings to the harness connector terminals: ELFR-1-QD black wire → L terminal, red wire → B terminal. Otherwise, use a test light or voltmeter to identify the ignition-switched power wire → ELFR-1-QD red wire, and the load output wire → ELFR-1-QD black wire. If the factory connector has a ground wire, leave it unconnected.	2045-08281 / 4508281; Guilera 013341 compatible replacement/supplied unit

Motorcycle LED Flasher Relay Compatibility Guide

Find the correct Custom LED flasher relay for your motorcycle

How to use this guide

Account

Resources

About & Services

Policies

Motorcycle LED Flasher Relay Compatibility Guide

Find the correct Custom LED flasher relay for your motorcycle

How to use this guide

Newsletter

Stay in Touch

Call Us

Free Shipping!

Latest News

Important Notice: Price Increase November 20, 2024

2015-2023 Yamaha YZF-R1 Ultimate Stealth Plate Mounts!

2016-2020 Kawasaki ZX-10R Blaster-X Integrated LED Tail Light Pre-Orders Open!

Account

Resources

About & Services

Policies
