ELFR-1-QD Electronic LED Flasher Relay with Quick Disconnects

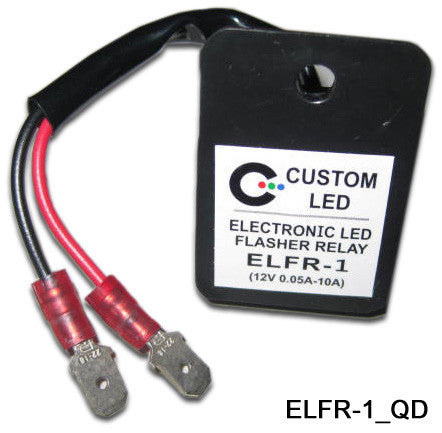

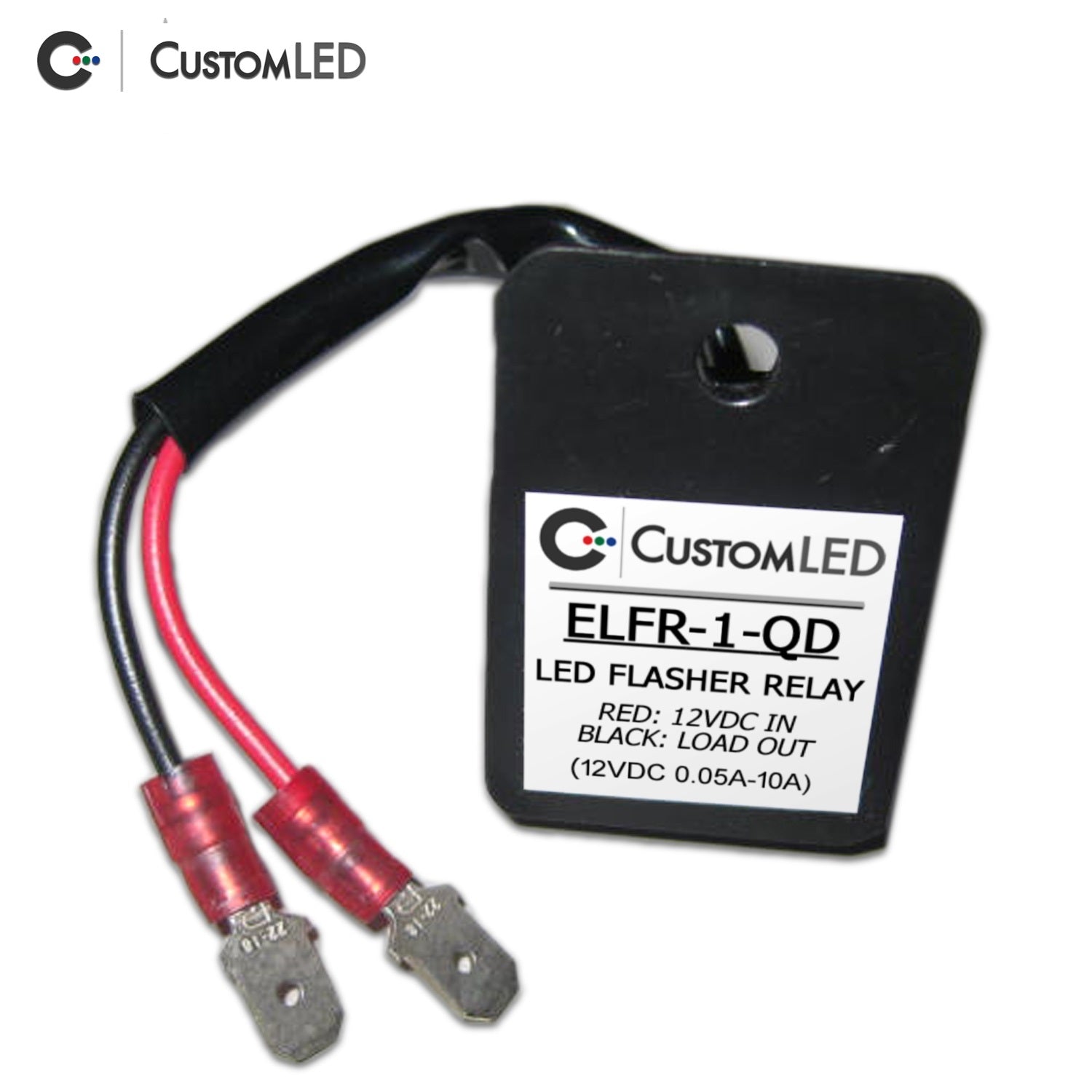

The ELFR-1-QD is the same part as our ELFR-1 LED flasher relay, however it has the quick-disconnect connectors installed on the wires as shown in the image.  This connector will fit some OEM flasher relay sockets.  Check the compatibility list for bikes that are known to have compatible OEM flasher relay sockets.

For other motorcycles not on this compatibility list, please click here.

Please read all of the product information in the Overview on our ELFR-1 page, for more information about this product.

• Minimum Rated Current: 0.05A
• Maximum Rated Current: 10A
• Rated Voltage: 12VDC
• Flash Rate: Constant
• Size: 1.2" x 1.77" x 0.74"

ELFR-1-QD FLASHER RELAY COMPATIBILITY LIST:

NOTE: USA SPEC SHOWN, FOR NON-US SPEC VERIFY INDIVIDUALLY

This list will determine if your motorcycle harness is known to have a relay socket that is compatible with the quick-disconnects on our ELFR-1-QD Flasher Relay!  If your bike is not on this list, please check the connector on your OEM flasher relay before ordering this part.  Our standard ELFR-1 unit is plug-and-play compatible with many motorcycles.

Note: If there are no specific connection instructions below for your motorcycle, you must follow the "All Applications" hard-wire installation instructions to identify the wires in your motorcycle relay socket with a test-light or volt meter before installing this product.  Improperly installing the ELFR-1 will destroy it.

We have a large collection of all Custom LED product videos on the Custom LED YouTube Channel.

The videos in this playlist below are a collection of user-submitted and original videos related to our LED Flasher Relays.

The Custom LED ELFR-1-QD Electronic LED Flasher Relay comes with detailed installation instructions.

Installation of this product requires that you identify and remove the OEM flasher relay motorcycle.  If you are unfamiliar with the location of your OEM flasher relay, or electronics in general, please consult a qualified technician or your repair manual for additional information.

Installation of the ELFR-1-QD is as follows:

Click icon to download.
Adobe Acrobat Reader is required to view this file.
If you are having problems viewing the file, please download the free software here.

NOTE: In some rare instances, when there are NO incandescent loads on the blinker system (LEDs front and rear), additional actions or components may also be required to prevent a wide range of blinker problems.  These problems are all associated with a lack of resistive load on an all-LED blinker system that was designed for incandescent lamps.  Problems such as, but not limited to: the 4-way blink problem (both sides blinking at the same time), the no-blink problem, and Integrated LED Tail Lights staying in "blinker mode" due to non-zero blinker voltages.  Rest assured that Custom LED has the knowledge, experience, and expertise to tackle any issues that may arise on your motorcycle.

Remember, the Flasher Relay ONLY controls the speed of the blinkers on the motorcycle, and any other problems that arise are independent of the flasher relay, and are resolved separately as well.
