2005-2009 Suzuki Boulevard M50 Integrated LED Tail Light Retrofit Kit

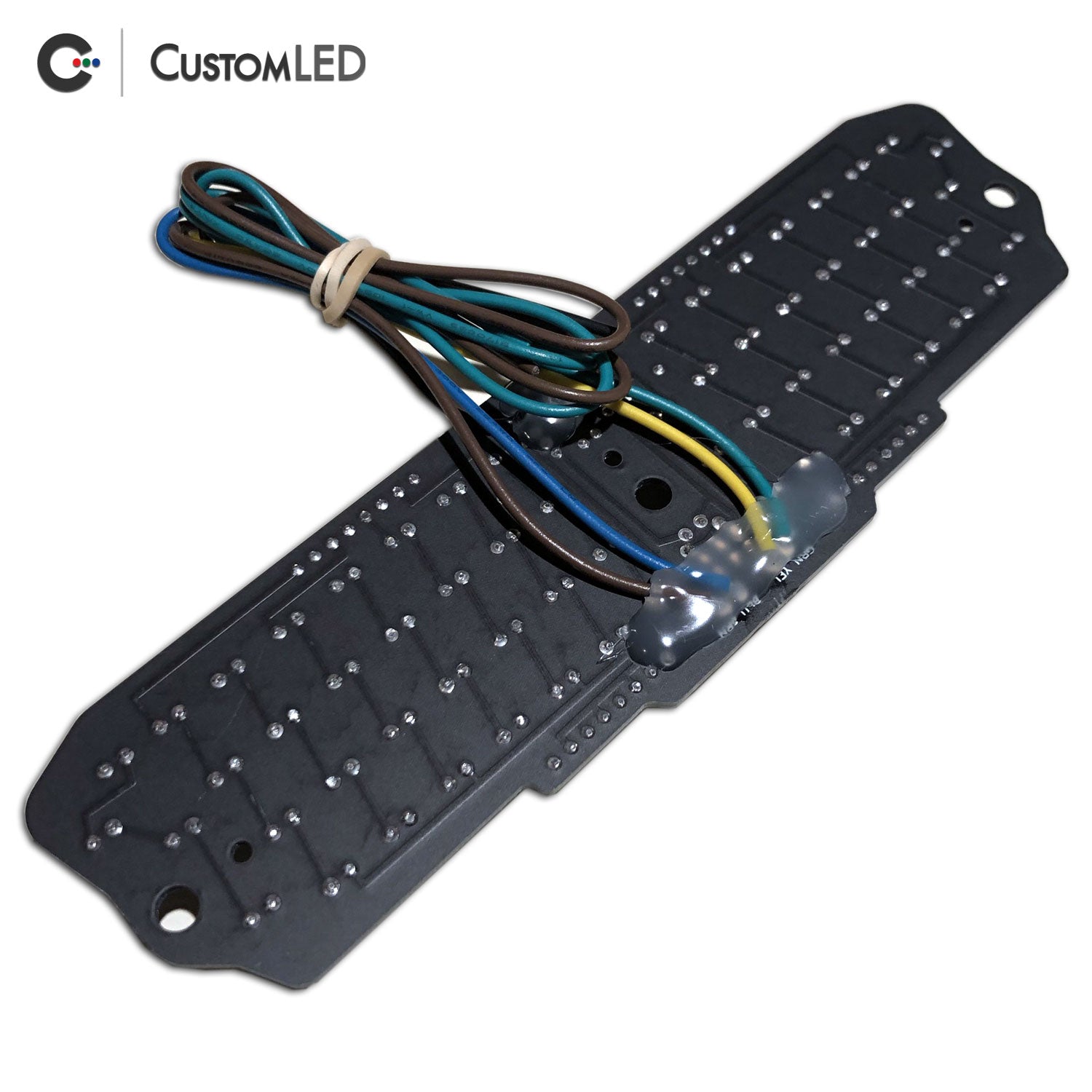

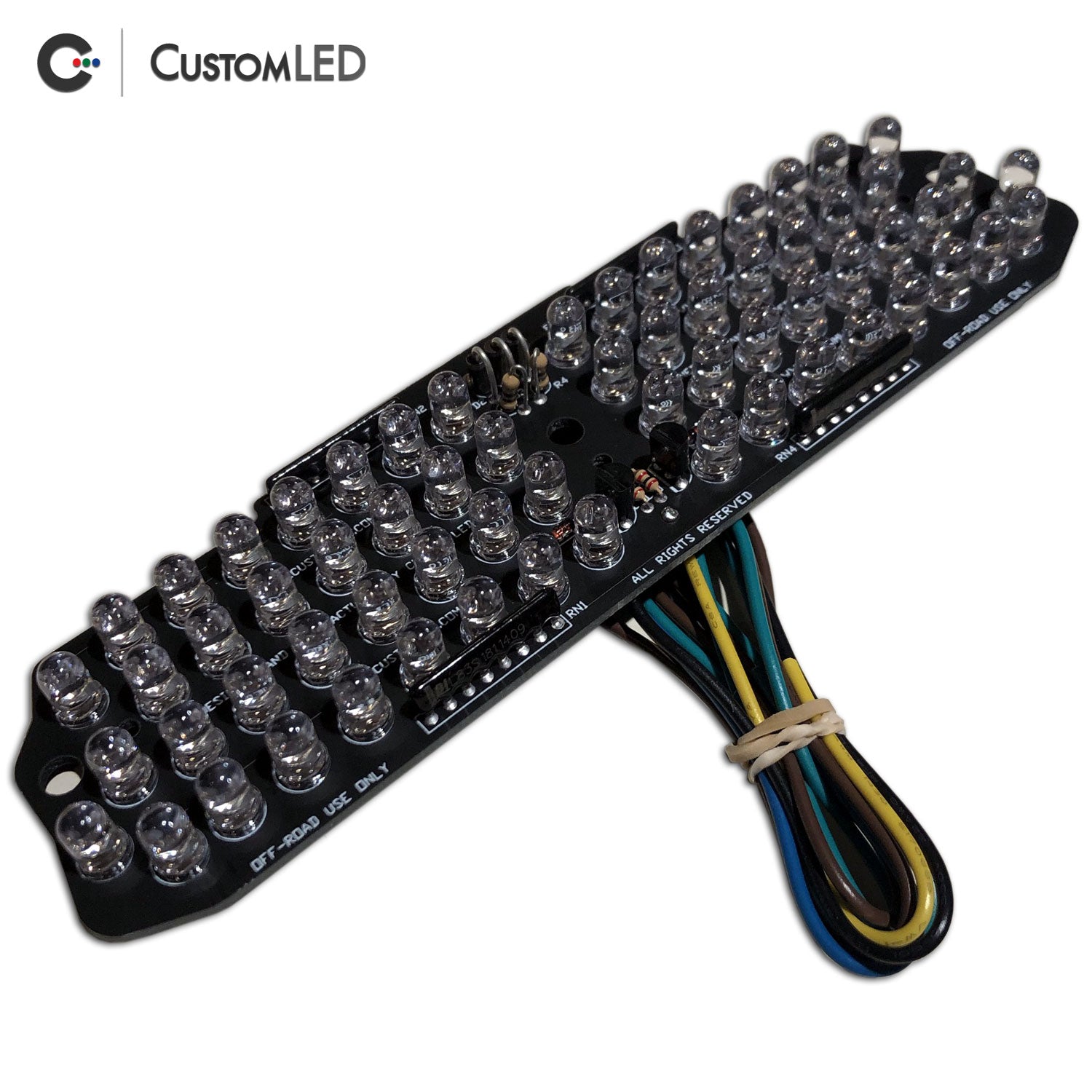

This is an integrated LED tail light retrofit for the 2005, 2006, 2007, 2008, 2009 Suzuki Boulevard M50 with built in yellow turn signals.  All the internals of the stock tail light are replaced with a Custom LED circuit board containing 32 Ultra Bright Red LEDs and 32 Ultra Bright Yellow LEDs - compared to only 12 red LEDs on the stock circuit board.

Just as on the other Custom LED models, the system is designed so that the red LEDs turn off (on one side) when the yellow comes on so that the turn indication is a pure yellow light.  The unit automatically flashes between the red and yellow on the side you're turning!  The Yellow LEDs are slightly offset as well, creating a dramatic attention grabbing effect.

The engineering is solid and dependable, the looks are unbeatable, and the brightness is incredible!  Don't waste your time with half hearted solutions, do it the right way from the start, with Custom LED.

• 32 Ultra Bright Red LEDs for running and brake lights.
• 32 Ultra Bright Yellow LEDs for turn signals.
• Custom LED ColorChange Technology on-board.
• Detailed step by step instructions with illustrations for a simple install.
• Smart color matched wires matches motorcycle wires for easy wiring.
• Only 2 wires to hook up outside of tail light housing.

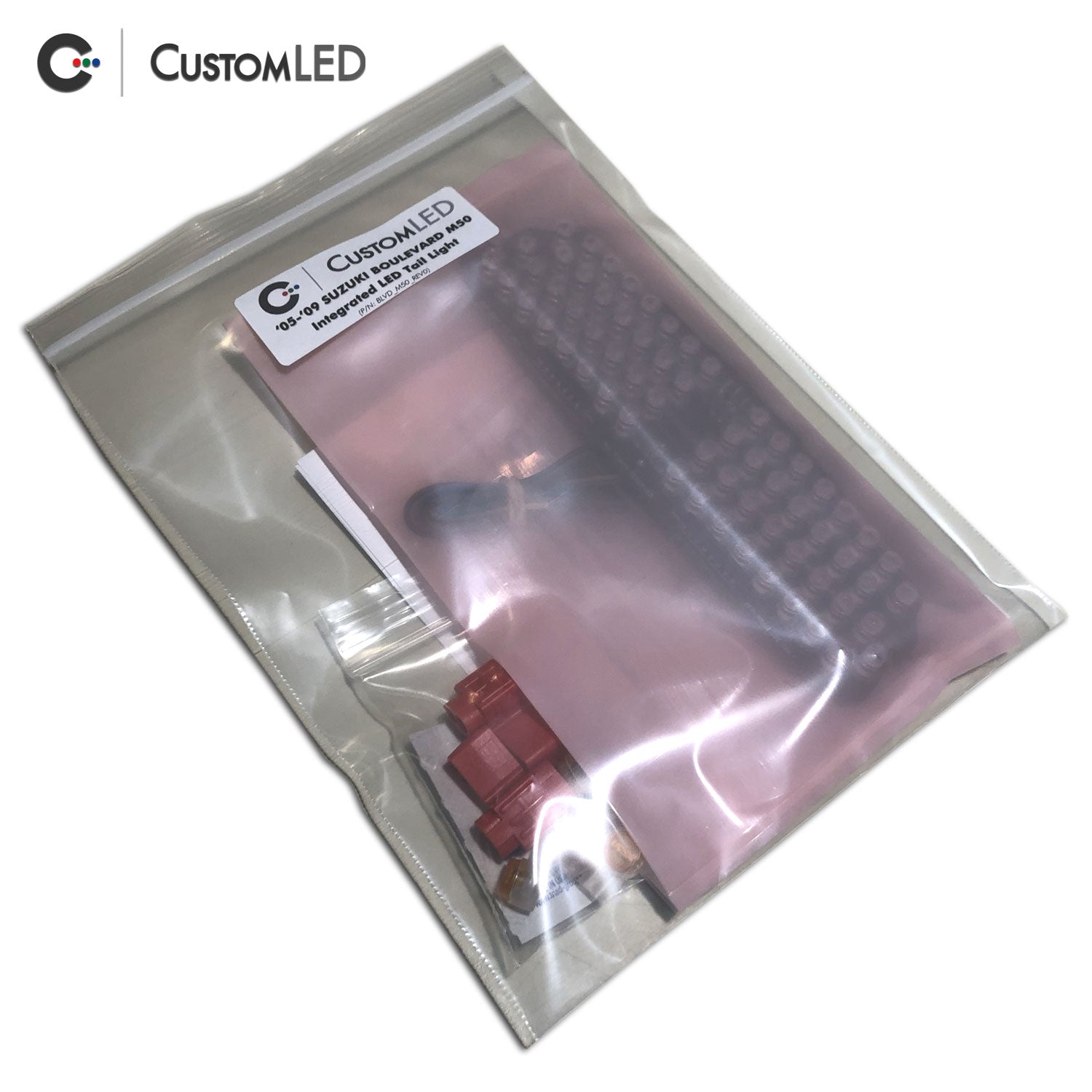

• All electrical connectors and hardware provided with kit.
• 1-year Warranty & Satisfaction Guarantee!
• Made in the USA.
• NOT DOT approved.

We have a large collection of all Custom LED product videos on the Custom LED YouTube Channel.

The videos in this playlist below are a collection of user-submitted and original videos related to this model motorcycle.

The Custom LED 2005-2009 Suzuki Boulevard M50 Integrated LED Tail Light retrofit kit must be installed into the OEM tail light.

There may be additional accessories required to correct blinker problems on your motorcycle if you remove your OEM turn signals. These accessories can not be built into the tail light, and are generally optional and specific to different customers needs, so they are sold separately. Please see the recommended accessorie, and read about the general issues and solutions in our Frequent Questions Page. If you have any questions, please do not hesitate to contact us.

If you remove the front or rear OEM turn signals and replace them with LEDs, the blinkers on your motorcycle will blink faster than stock to alert you that you have a bulb burned-out.  LEDs do not draw as much power as the power-hungry incandescent lamps, so the flasher relay detects this drop in power draw as a lamp failure.  Normally, replacing the flasher relay is the best solution for fast-blink issues as it solves the problem at the source.  Our ELFR-1-U Electronic LED flasher relay is Plug-and-Play on the Boulevard M50, and will keep the front and rear blinkers blinking at the normal speed, regardless of what type of blink lamps they are.

Installation of this product requires that you remove the OEM tail light from the motorcycle for the retrofit kit installation.  Please consult a qualified technician or your repair manual for the proper procedure to remove the OEM tail light.

Once the OEM tail light is removed from the motorcycle, installation of the Custom LED Integrated LED Tail Light is detailed in the instructions below.
